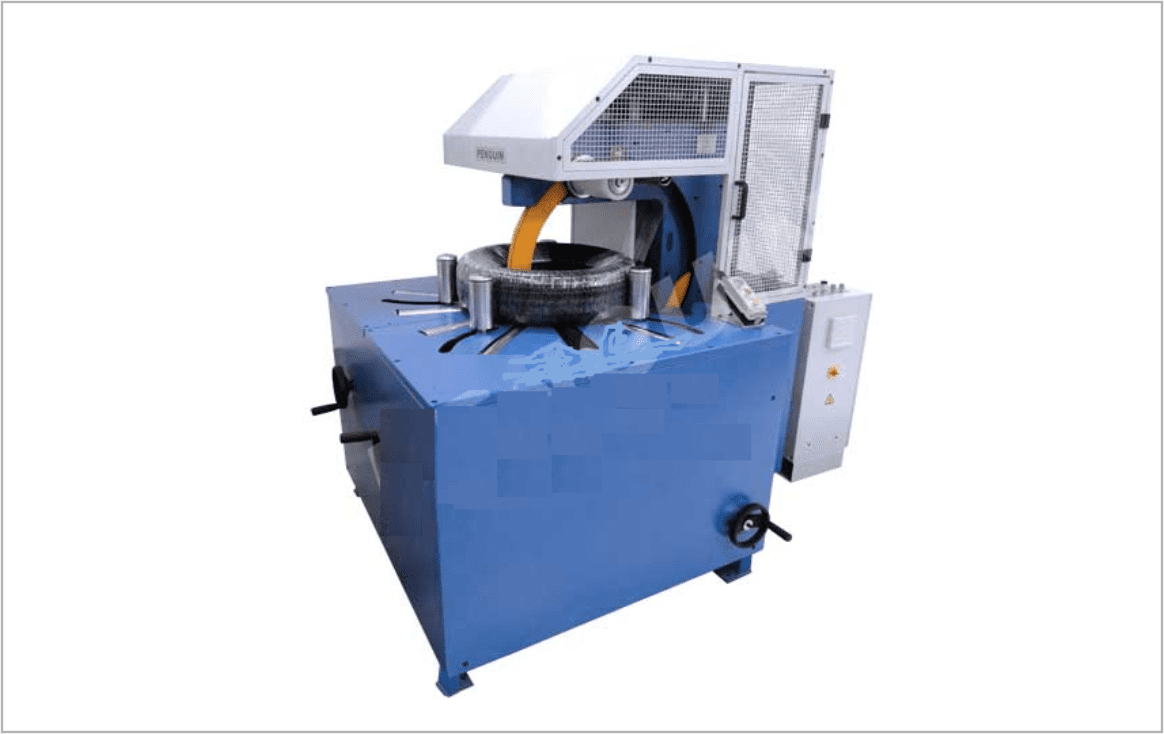

Tyre Stretch Wrapping Machine

Name: Tyre Stretch Wrapping Machine
SKU: SGP-18

• Fully Automatic Machine.

• Heavy duty turn table for all industrial applications.

• Sturdy mast and machined guide ways for guiding the stretch unit.

• Compact stretch unit with change gears to vary stretch percentage.

• Suitable for a wide range of stretch film material.

• Modular in construction

CAPACITY
Inner diameter	Min. 400mm
Outside diameter	Max. 1400mm; Min. 650mm
Height	Max. 400mm; Min. 270mm
Weight / pallet	Max. 250 kg
TURN TABLE
Table height	935mm
Max. roller speed	40 rpm
Max. ring speed	60 rpm
Power required	415V, Three phase , 50 Hz
Installed power	1.86 kW / 2.5 HP
FILM DETAILS
Material	LLDPE – Stretch film / HDPE – Woven sacks
Film width	200mm
Film thickness	15-40 µ (30µ recommeded)
Core diameter	50.8mm or 76.2mm
Maximum film diameter	220mm
Number of Packing rolls	2
