• Heavy duty double-chain carriage lift, calm and safety.
• Carriage door opens for effortless roll change and thread film.
• Film dancer-bar control film output.
• Safety stop to avoid foot crush.
• Hinged mast for easy handling.
• Front & rear Forklift transportable.
Application:
Pallet Stretch wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
Technical Specification:

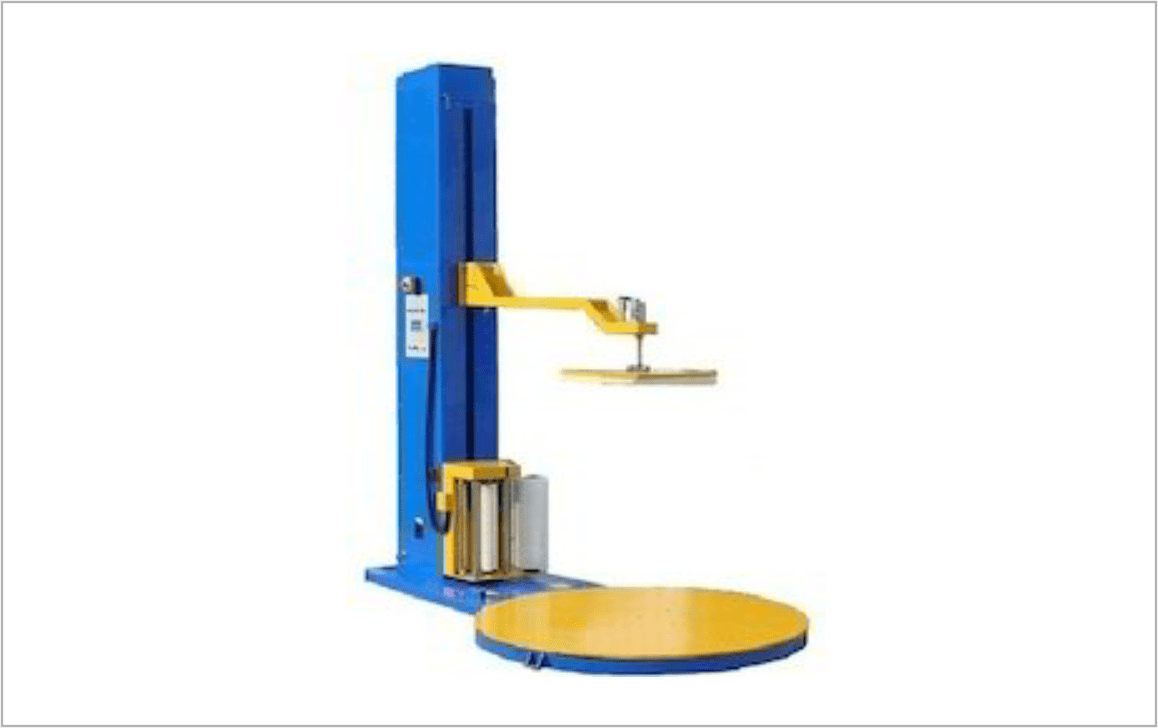

| Model | Pallet Stretch Wrapping Machine SPSW 2100 |
|---|---|
| Max Wrapping Size(L x W x H) (Max)(mm) | (500 -1200) x ( 500 -1200) |
| Wrapping Efficiency(loads/hour) | 20 – 40 |
| Turntable Speed(rpm/min) | 3-12 |
| Turntable Diameter(mm) | ø : 1650 / H : 85 |
| Turntable Loading (max)(kg) | 2000 |
| Electrical requirement ( V/Hz) | 220 / 50 |
| Power (kw) | Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37 |
| Film Carriage | Pre-Stretch Type |
| Control System | PLC |
| Top Plate Device | Pneumatic Direct Transmit, Orbit Top Plate |
| Weight (kg) | 800 kg |
| Machine Dimension (mm) | L Type : 2745 x 1650 x 2700 / H Type : 2745 x 1650 x 3300 |
