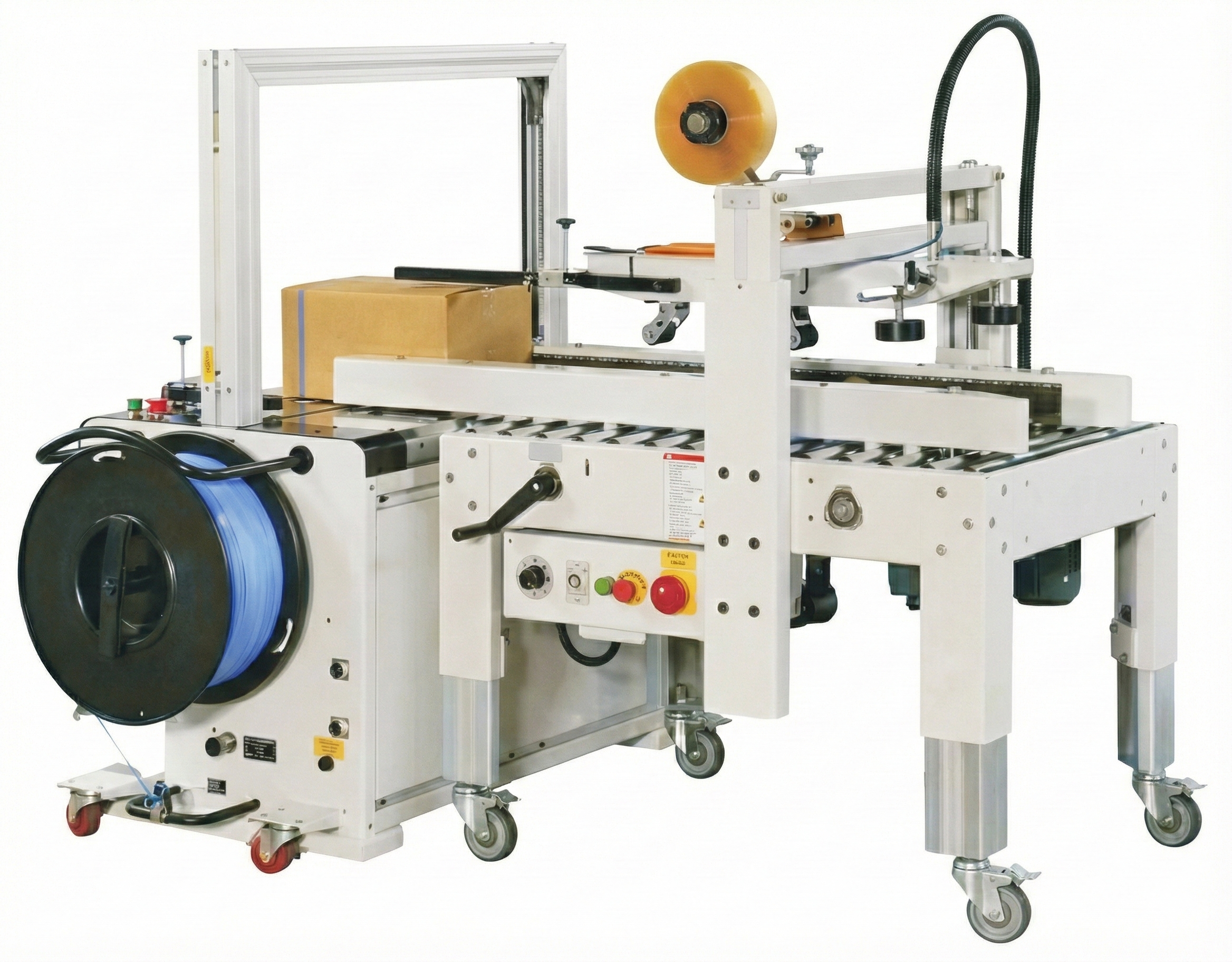

SGP 102 PLS Automatic Packing Line consists of semiautomatic carton sealer, high-table automatic strapping machine and conveying rack. The carton sealer and strapping machine can also be used separately as single unit.
Feature:
• Small size, takes up less space.
• Can reduce the packing cost.
• Easy to operate and service.
Application:
SVP 102 PLS Automatic Packing Line has the function of continuous auto carton sealing and multi-passes strapping.
Technical Specification:
| Model | SGP 102 PLS (Auto Packing Line) |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Gross Power (W) | 1100 |
| Max. Carton Size (L x W x H) (mm) | 600 x 500 x 500 |
| Min. Carton Size (L x W x H) (mm) | 180 x 300 x 130 |
| Speed (m/min) | 16 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 830 |
| Adhesive Tape (mm) | BOPP, PVC Adhesive tape, width 60,76mm |
| Available Strapping Belt (mm) | Plastic Strapping Belt, Width : 9~15, Thickness : 0.5~1.1 |
| Air Compressor (optional) | 2/3 Litres at 5 Bars |
| External Dimensions (L x W x H) (mm) | 6650 x 1420 x 1565 |
| Net Weight (kg) | 385 |
