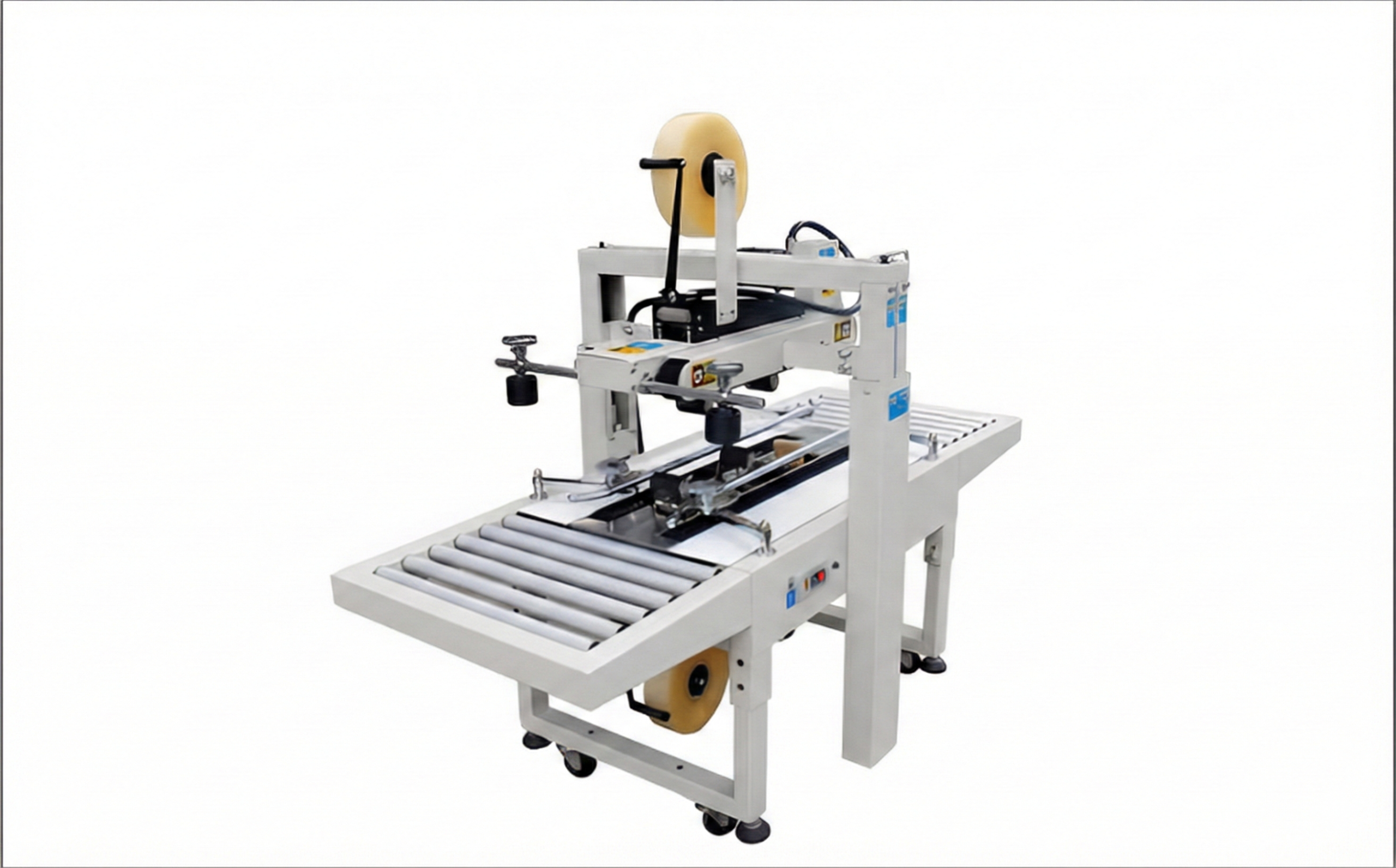

• FXJ series is designed to seal carton by applying adhesive tape
• Cost effective, High speed
• Easy size changeovers
• For integration into production line or as stand alone machine
• It’s widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry
• Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
• Printed tape can be used to improve enterprise image
• Model FXJ-6050: top and bottom drive belts, used in circumstance where cartons size is not changed frequently, especially ideal for sealing uniform and high cartons.
| Model No. | SGPFXJ-6050 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Max. Carton Size (W × H)(mm) | 500 × 600 |
| Min. Carton Size (W × H)(mm) | 180 × 130 |
| Speed (m/min) | 20 m/min（30 cartons/min） |
| Adhesive Tape Materials | BOPP, PVC adhesive tape,water-free adhesive tape |
| Height of Table (mm) | 635-780 |
| Width of Adhesive Tape (mm) | 48，60，72（optional） |
| External Dimensions (L × W × H)(mm) | 1755 × 800 × (960-1605) |
| Net Weight | 150 |
